Skip to main contentAssembly Instructions

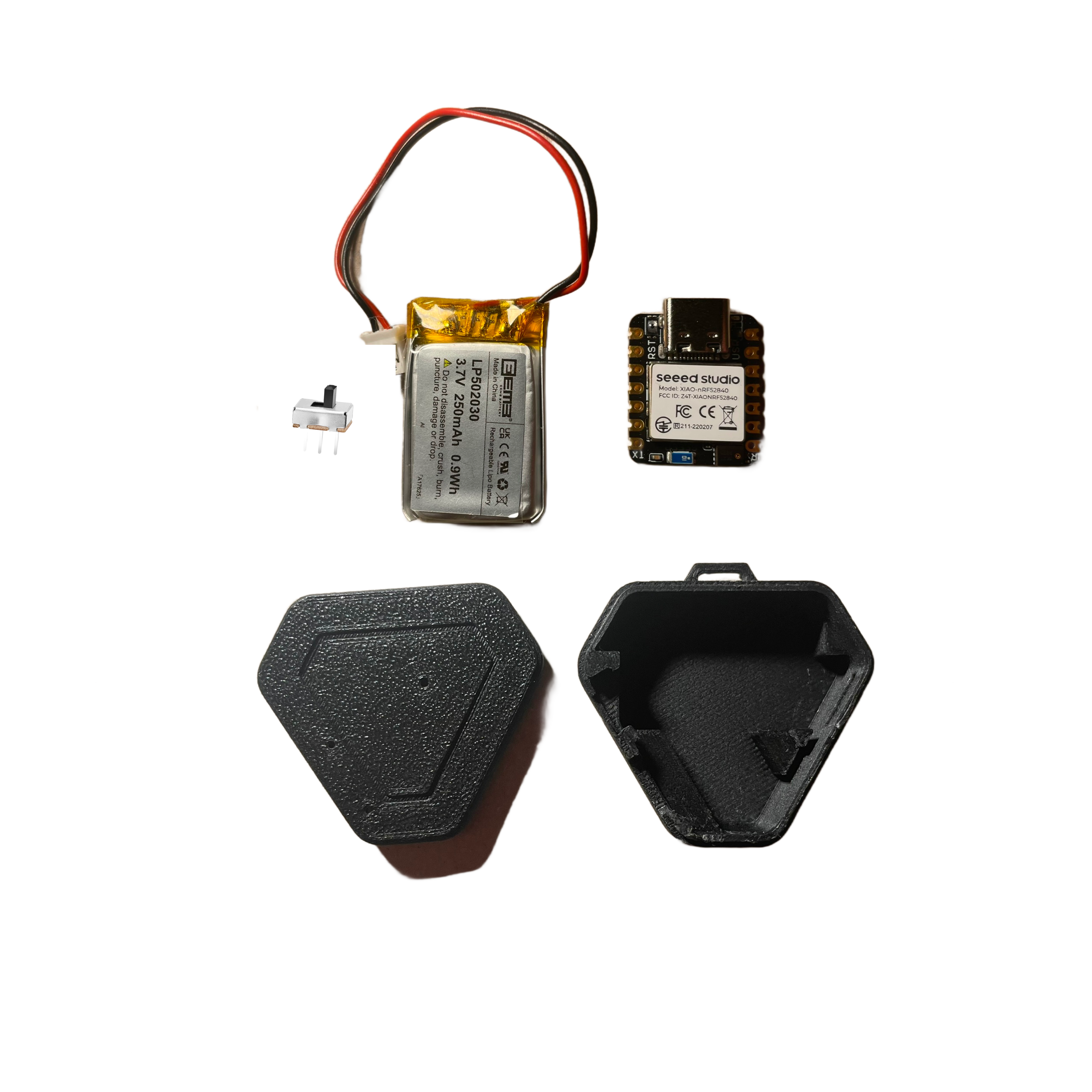

Step 0: Prepare the Components
- Ensure you’ve purchased all required components from the Buying Guide.

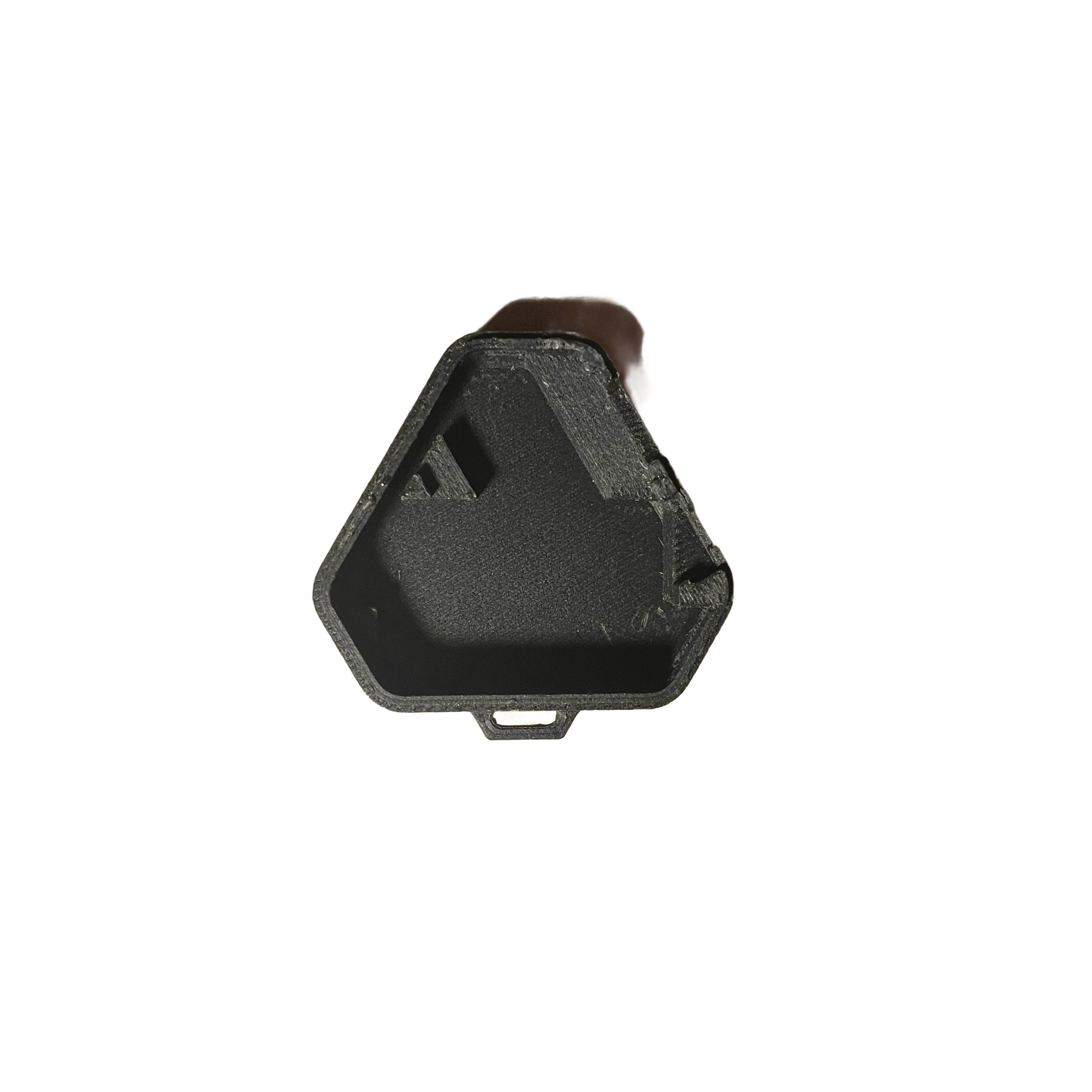

- Download and print the case using the provided
.stl file: Case Design.
- If you don’t have access to a 3D printer, use a 3D printing service or check Makerspace for printing locations.

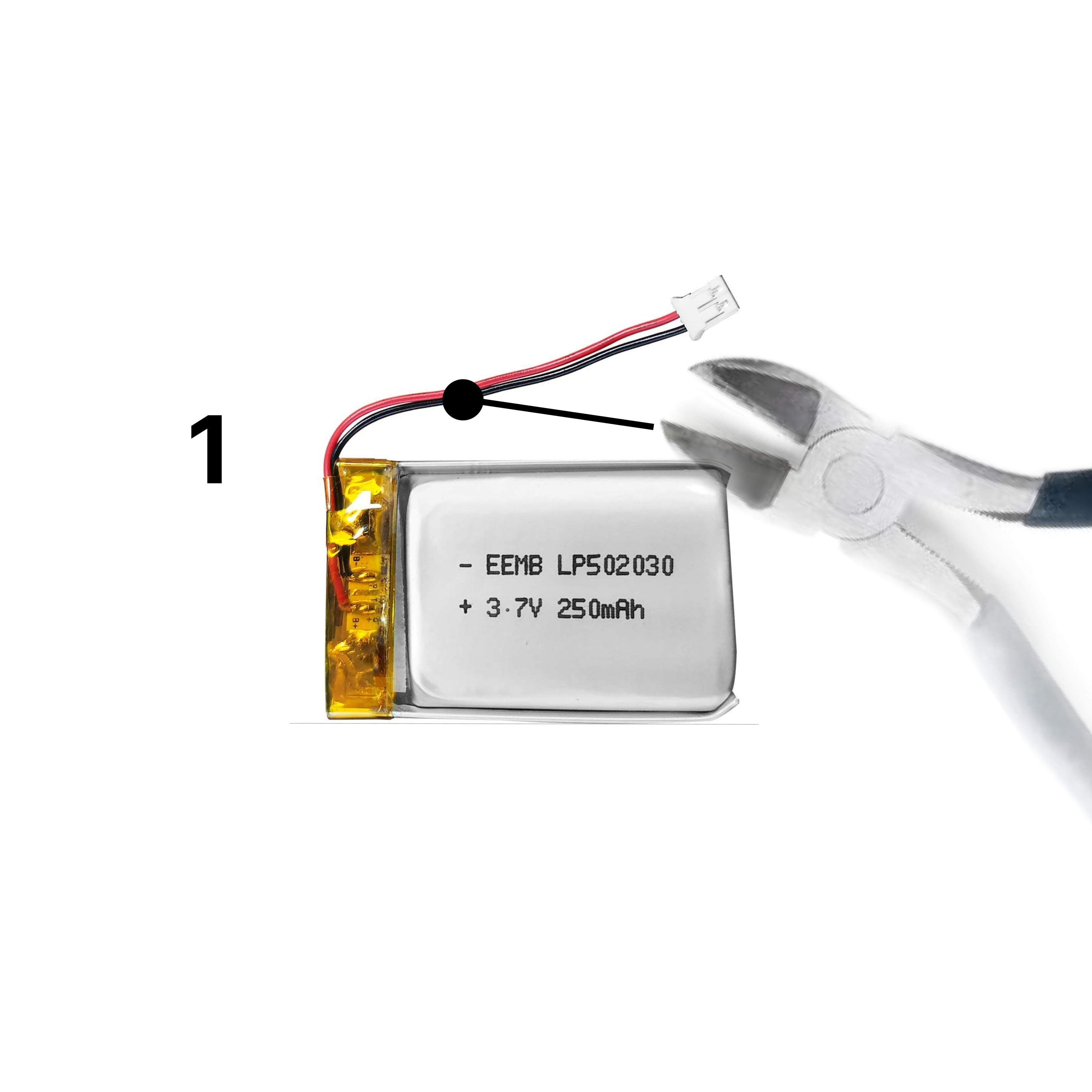

Step 1: Cut the Black Wire
Cut the black wire approximately 2/3” from the base.
Step 2: Strip the Wire Ends
Remove a small portion of insulation from both ends of the cut wire using a wire stripper.
- Use the 28 AWG notch for best results.
Step 3: Solder the Components
Follow the soldering diagram to connect the battery to the board.

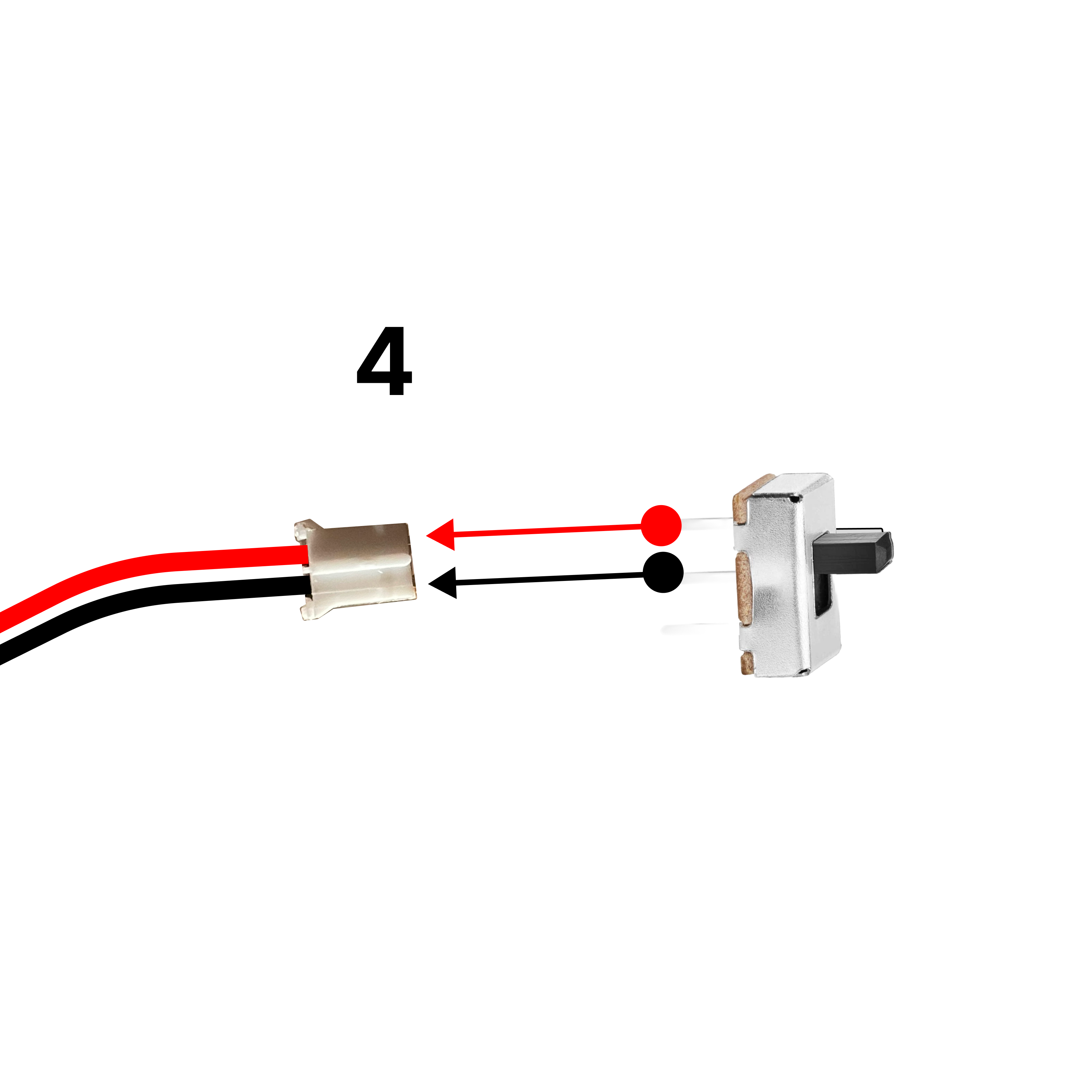

Step 4: Secure the Switch
Insert the switch securely into the battery connector.

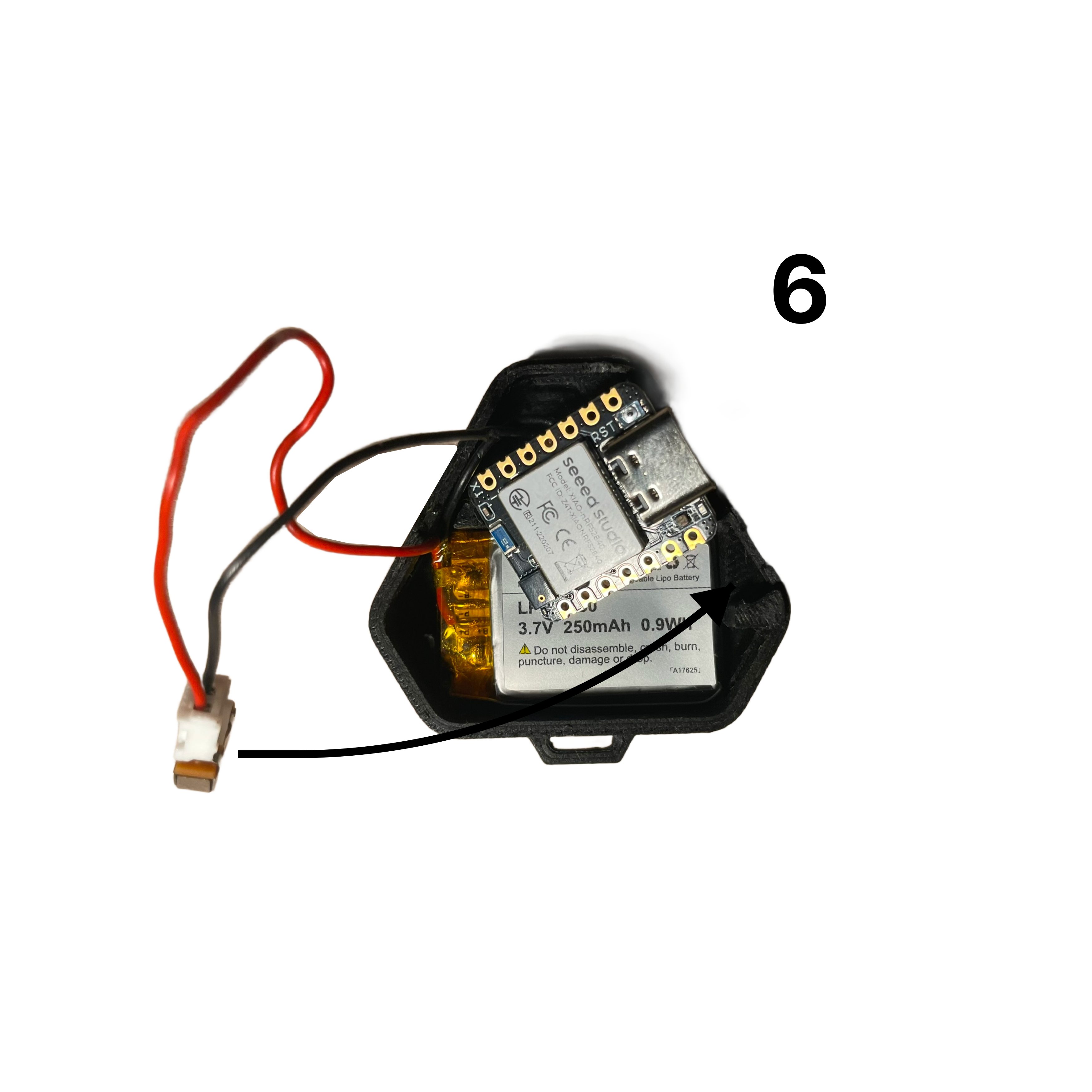

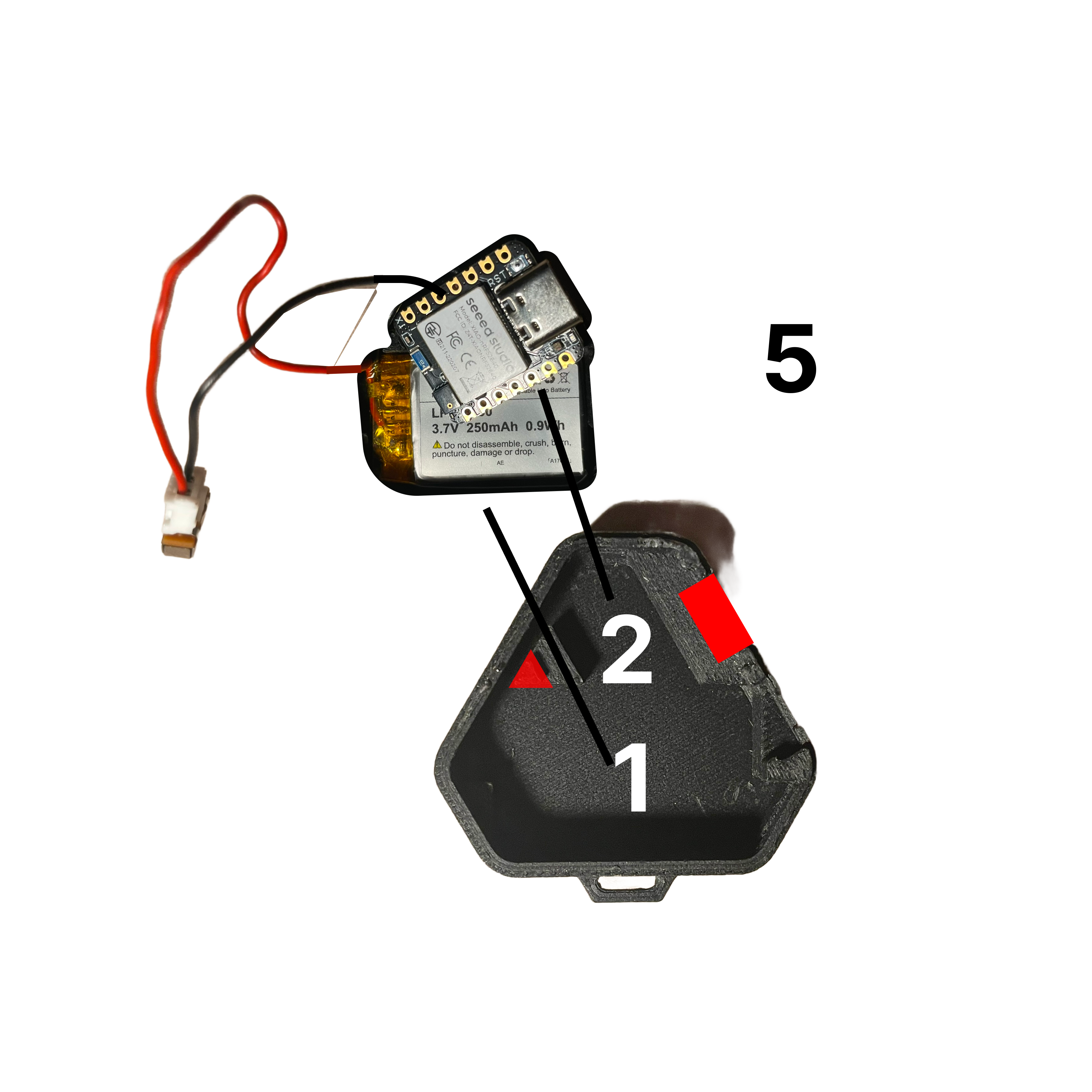

Step 5: Assemble the Battery and Board
Place the battery and board into the 3D-printed case.
Step 6: Insert the Switch
Position the switch into the notch next to the USB-C slot.

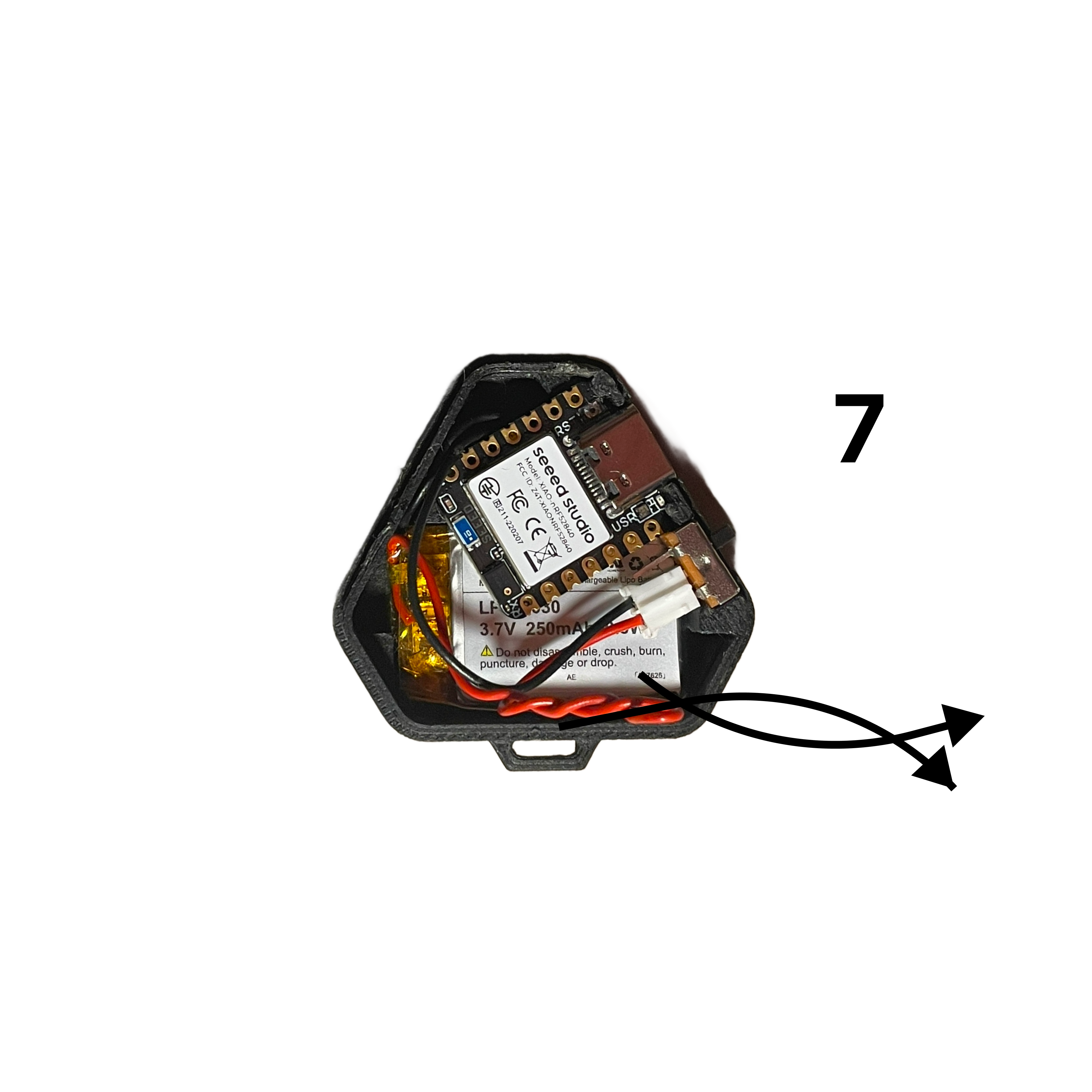

Step 7: Manage the Wires
Twist the longer red wire gently to help organize it within the case.

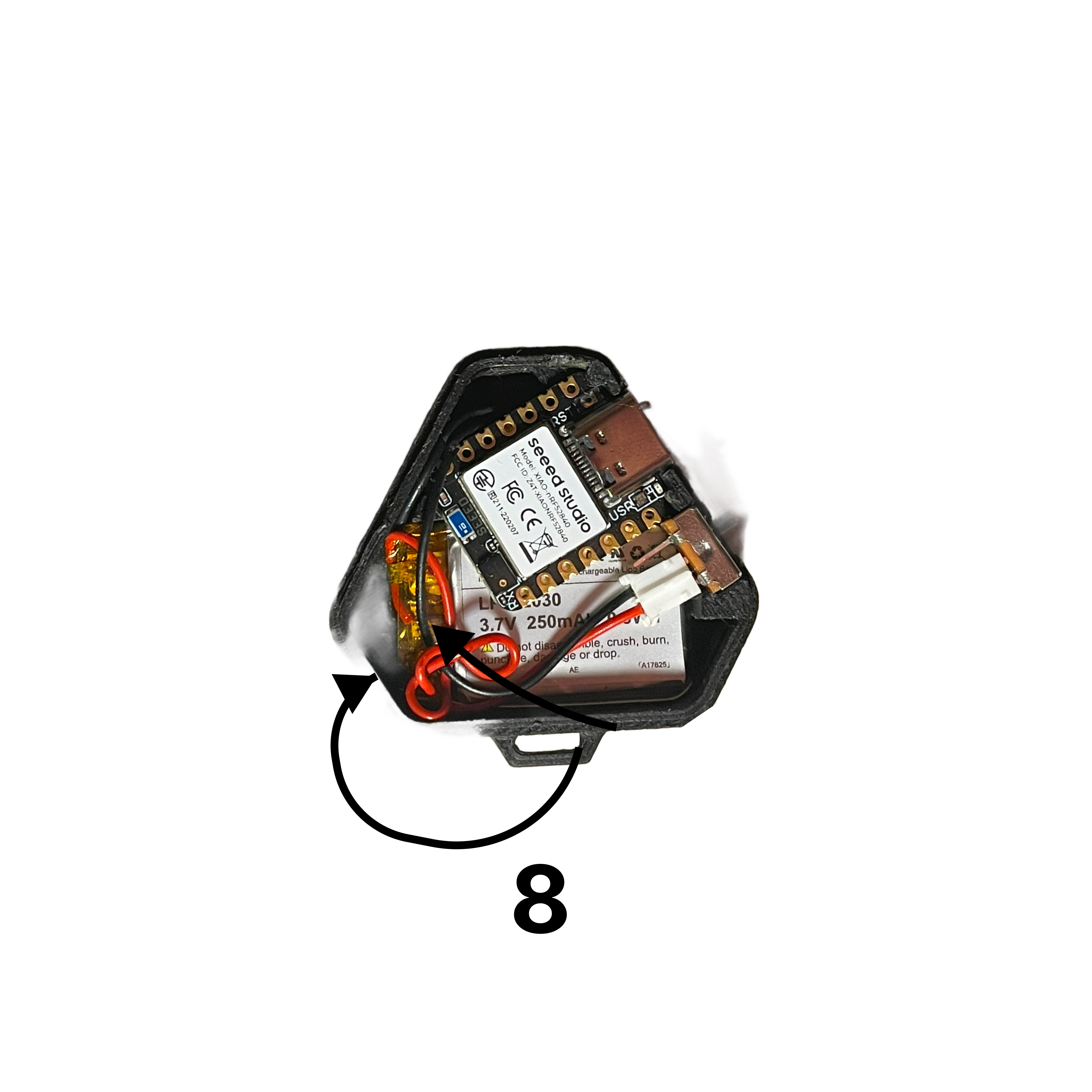

Step 8: Curl the Wire
Carefully curl the twisted wire and place it to the side to ensure it fits within the case.

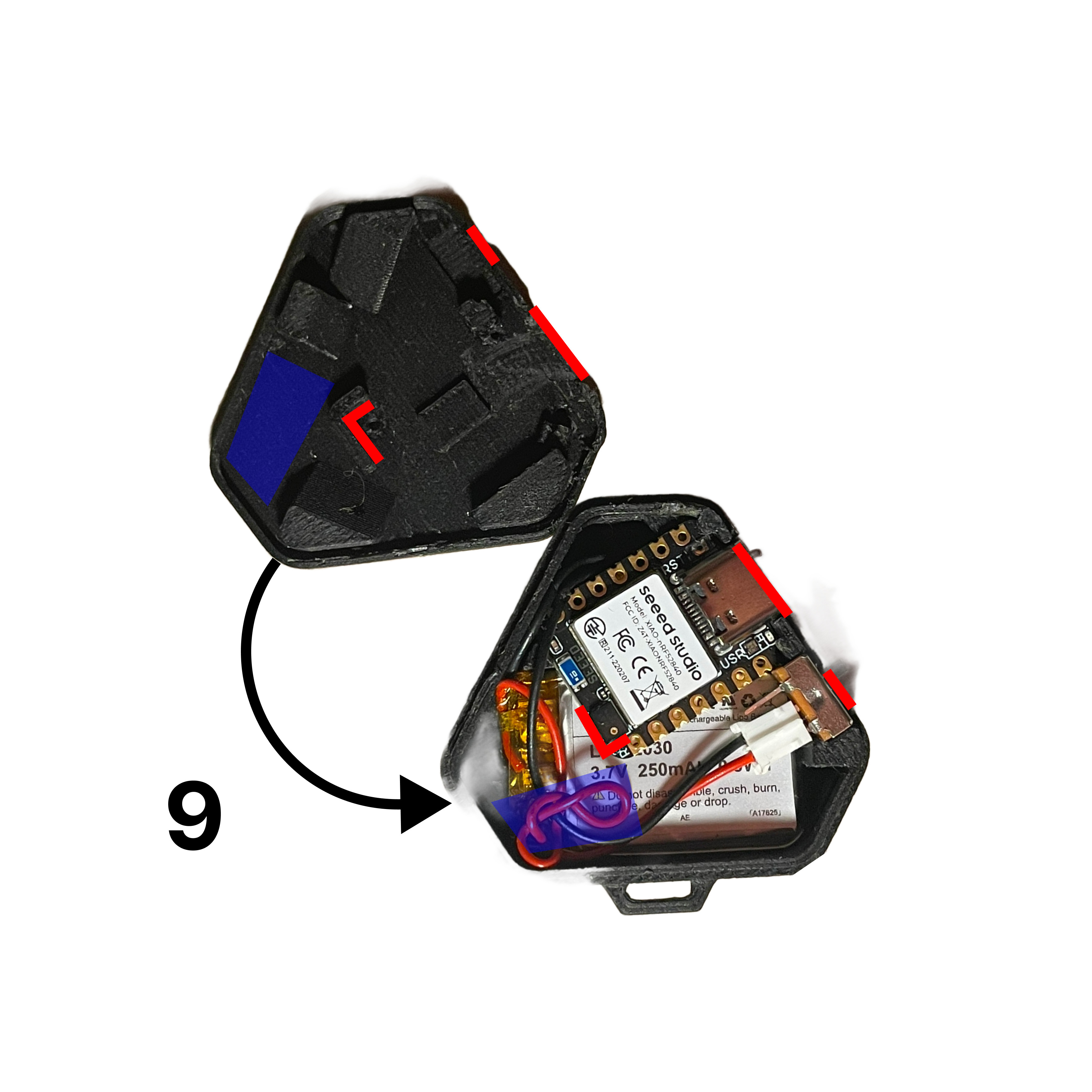

Step 9: Attach the Lid
Align the lid with the case using the ridges as a guide and snap it into place.

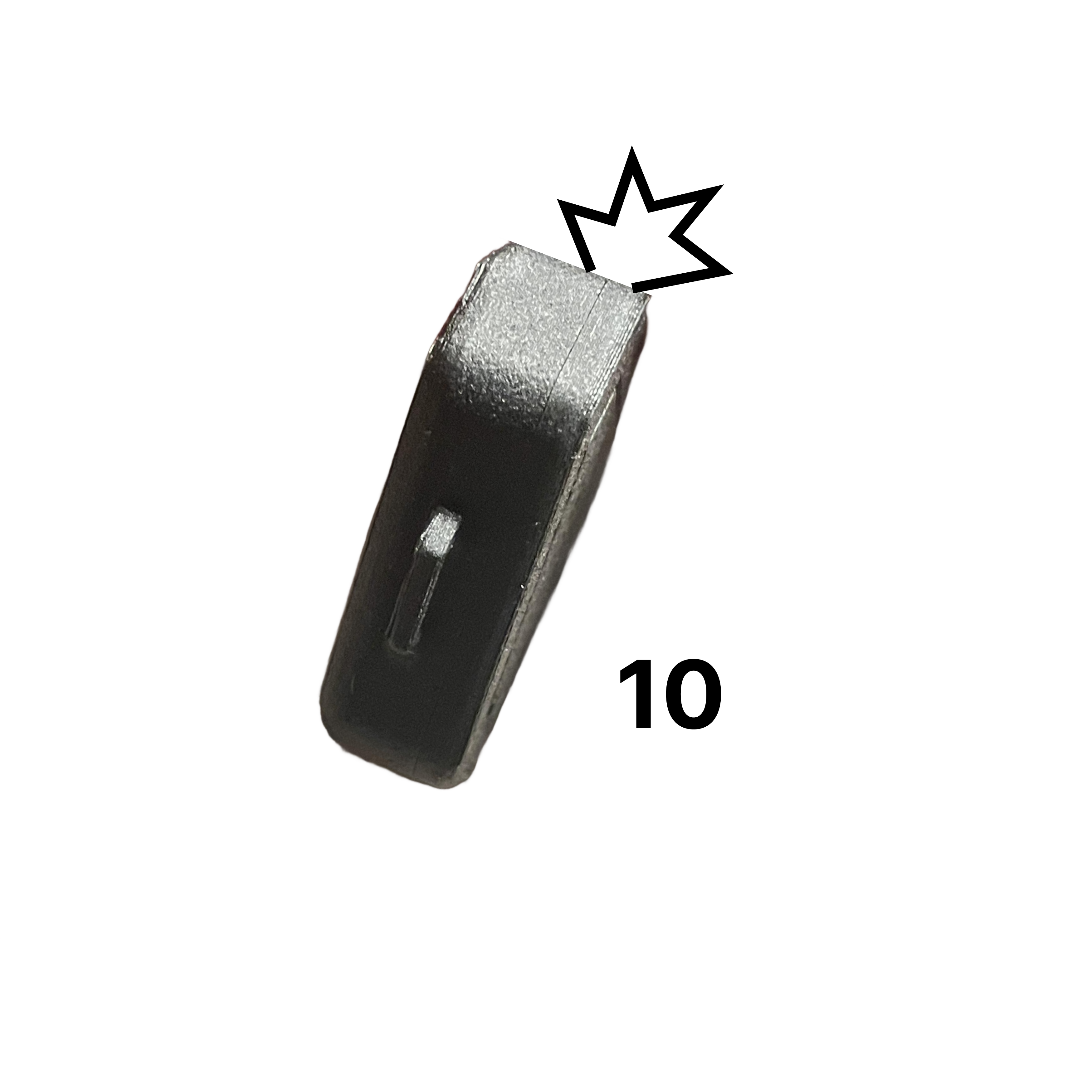

Step 10: Secure the Case
Apply even pressure around the edges to ensure the seams snap securely into place.
Charging Instructions
Important:
- OMI can only charge when it is powered on.
- The device will not charge if powered off.
🎉 Congratulations!
You now have a fully assembled and functional OMI device! Enjoy exploring its features and capabilities.
