Memory Embeddings

​

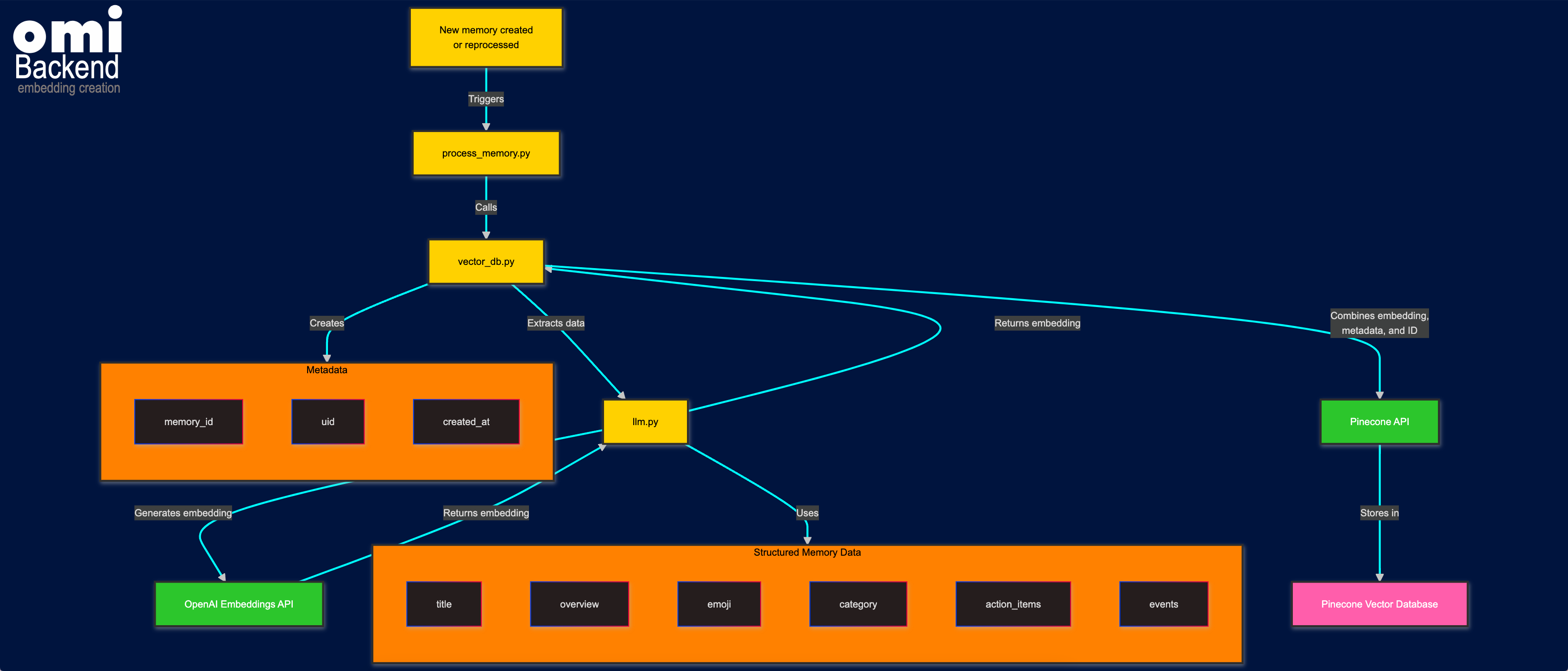

🔄 Process Overview

1. Memory processing triggers embedding creation
2. Structured data is extracted from the memory
3. OpenAI API generates the embedding
4. Metadata is created for the embedding
5. Embedding and metadata are stored in Pinecone

​

📊 Detailed Steps

​

1. Memory Processing Triggers Embedding Creation

• Initiated in utils/memories/process_memory.py when:
  • A new memory is created
  • An existing memory is reprocessed
• process_memory function calls upsert_vector in database/vector_db.py

​

2. Extract Structured Data

• database/vector_db.py passes the Memory object to utils/llm.py
• utils/llm.py extracts the structured field from the Memory object

​

Structured Field Contents

​

3. Generate Embedding with OpenAI API

• generate_embedding function in utils/llm.py:
  • Calls OpenAI’s Embeddings API
  • Passes extracted structured data as text
  • OpenAI model processes text and returns numerical vector representation

​

4. Create Metadata

• database/vector_db.py creates a metadata dictionary:

​

5. Store in Pinecone

• database/vector_db.py:
  • Combines embedding vector, metadata, and unique ID
  • Sends data point to Pinecone API using upsert operation
  • Pinecone stores embedding and metadata in specified index

​

🎯 Why This Matters

1. Semantic Search: Enables Omi to find semantically similar memories when answering user questions
2. Metadata for Filtering: Allows efficient filtering of memories by user or time range during retrieval

​

🔍 Additional Considerations

• Embedding Model: Uses OpenAI’s text-embedding-3-large model
• Index Configuration: Ensure Pinecone index is configured for the chosen embedding model
• Retrieval: query_vectors function in database/vector_db.py retrieves memory IDs based on query embedding and filter criteria

​

💻 Key Code Components

# In utils/memories/process_memory.py
def process_memory(uid, language_code, memory, force_process=False):
    # ... (other processing)
    vector = generate_embedding(str(structured))
    upsert_vector(uid, memory, vector)
    # ...

# In utils/llm.py
def generate_embedding(content: str) -> List[float]:
    return embeddings.embed_documents([content])[0]

# In database/vector_db.py
def upsert_vector(uid: str, memory: Memory, vector: List[float]):
    # ... (create metadata and upsert to Pinecone)
