Real-time Transcription

Overview

Omi’s transcription system provides real-time speech-to-text conversion with speaker identification, multiple language support, and seamless integration with the conversation processing pipeline.

Quick Start
Full Documentation
Key Concepts

Connect to /v4/listen WebSocket with your user token and start streaming audio. Transcripts arrive in real-time as JSON.

WebSocket Endpoint

WebSocket connections require Firebase authentication. The uid parameter must be a valid user ID obtained through Firebase Auth.

Endpoint URL

wss://api.omi.me/v4/listen?uid={uid}&language={lang}&sample_rate={rate}&codec={codec}

Query Parameters

uid (required)

Type: stringUser ID obtained from Firebase authentication. Required for all connections.

language

Type: string | Default: 'en'Language code for transcription. Supports:

Standard codes: 'en', 'es', 'fr', 'de', 'ja', 'zh', etc.
Multi-language: 'multi' for automatic language detection (uses Soniox)

sample_rate

Type: integer | Default: 8000Audio sample rate in Hz. Common values: 8000, 16000, 44100, 48000

codec

Type: string | Default: 'pcm8'Audio codec. Supported options:

pcm8 - 8-bit PCM (default)
pcm16 - 16-bit PCM
opus - Opus codec (16kHz)
opus_fs320 - Opus with 320 frame size
aac - AAC codec
lc3 - LC3 codec
lc3_fs1030 - LC3 with 1030 frame size

channels

Type: integer | Default: 1Number of audio channels. Use 1 for mono, 2 for stereo.

include_speech_profile

Type: boolean | Default: trueEnable speaker identification using the user’s stored speech profile. When enabled, the system uses a dual-socket architecture for improved speaker detection.

conversation_timeout

Type: integer | Default: 120 | Range: 2-14400Seconds of silence before the conversation is automatically processed. After this timeout, the conversation is saved and LLM processing begins.

stt_service

Type: string | OptionalExplicitly specify STT service. Options: deepgram, soniox, speechmatics. If not specified, the system selects based on language.

custom_stt

Type: string | Default: 'disabled'Enable custom STT mode. When set to 'enabled', the backend accepts app-provided transcripts instead of using STT services. Useful for apps with their own transcription.

source

Type: string | OptionalConversation source identifier. Examples: 'omi', 'openglass', 'phone'

Audio Codecs

The system supports multiple audio codecs with automatic decoding:

Codec	Sample Rate	Description	Use Case
`pcm8`	8kHz	8-bit PCM	Default, low bandwidth
`pcm16`	16kHz	16-bit PCM	Better quality
`opus`	16kHz	Opus encoded	Efficient compression
`opus_fs320`	16kHz	Opus 320 frame	Alternative frame size
`aac`	Variable	AAC encoded	iOS compatibility
`lc3`	Variable	LC3 codec	Bluetooth audio
`lc3_fs1030`	Variable	LC3 1030 frame	Alternative LC3

All audio is internally converted to 16-bit linear PCM before being sent to STT providers.

STT Service Selection

The system automatically selects the best STT provider based on language:

Provider Capabilities

Provider	Languages	Model	Best For
Deepgram Nova-3	30+	`nova-3`	Primary English, major languages
Deepgram Nova-2	40+	`nova-2-general`	Broader language support
Soniox	95+	Real-time	Multi-language, auto-detection
Speechmatics	50+	Real-time	Additional coverage

Deepgram Configuration

When using Deepgram, the following options are configured:

Option	Value	Purpose
`punctuate`	`true`	Automatic punctuation insertion
`no_delay`	`true`	Minimize latency for real-time feedback
`endpointing`	`300`	300ms silence to detect sentence boundaries
`interim_results`	`false`	Only return final transcripts
`smart_format`	`true`	Format numbers, dates, currencies
`profanity_filter`	`false`	Keep all words unfiltered
`diarize`	`true`	Enable speaker identification
`filler_words`	`false`	Remove “um”, “uh”, etc.
`encoding`	`linear16`	16-bit PCM encoding

External Custom STT Service

Build your own transcription/diarization WebSocket service that integrates with Omi.

Your Service Receives

Message	Format	Description
Audio frames	Binary	Raw audio bytes (codec configured by app, typically `opus` 16kHz)
`{"type": "CloseStream"}`	JSON	End of audio stream

Your Service Sends

Format: JSON object with segments array

{
  "segments": [
    {
      "text": "Hello, how are you?",
      "speaker": "SPEAKER_00",
      "start": 0.0,
      "end": 1.5
    },
    {
      "text": "I'm doing great, thanks!",
      "speaker": "SPEAKER_01",
      "start": 1.6,
      "end": 3.2
    }
  ]
}

Segment Fields

Field	Type	Required	Description
`text`	`string`	Yes	Transcribed text
`speaker`	`string`	No	Speaker label (`SPEAKER_00`, `SPEAKER_01`, etc.)
`start`	`float`	No	Start time in seconds
`end`	`float`	No	End time in seconds

Requirements

Response must be an object with segments key. Raw arrays [{...}] will fail.
Do not include a type field, or set it to "Results". Other values are ignored.
Connection closes after 90 seconds of inactivity.

Speech Profile & Dual-Socket Architecture

When a user has a speech profile, the system uses a sophisticated dual-socket architecture for improved speaker identification.

How It Works

Speech Profile Benefits

User Identification: Audio from the first ~30 seconds trains speaker recognition
Speaker Attribution: System identifies which segments are from the device owner
Improved Accuracy: Better speaker diarization in multi-person conversations

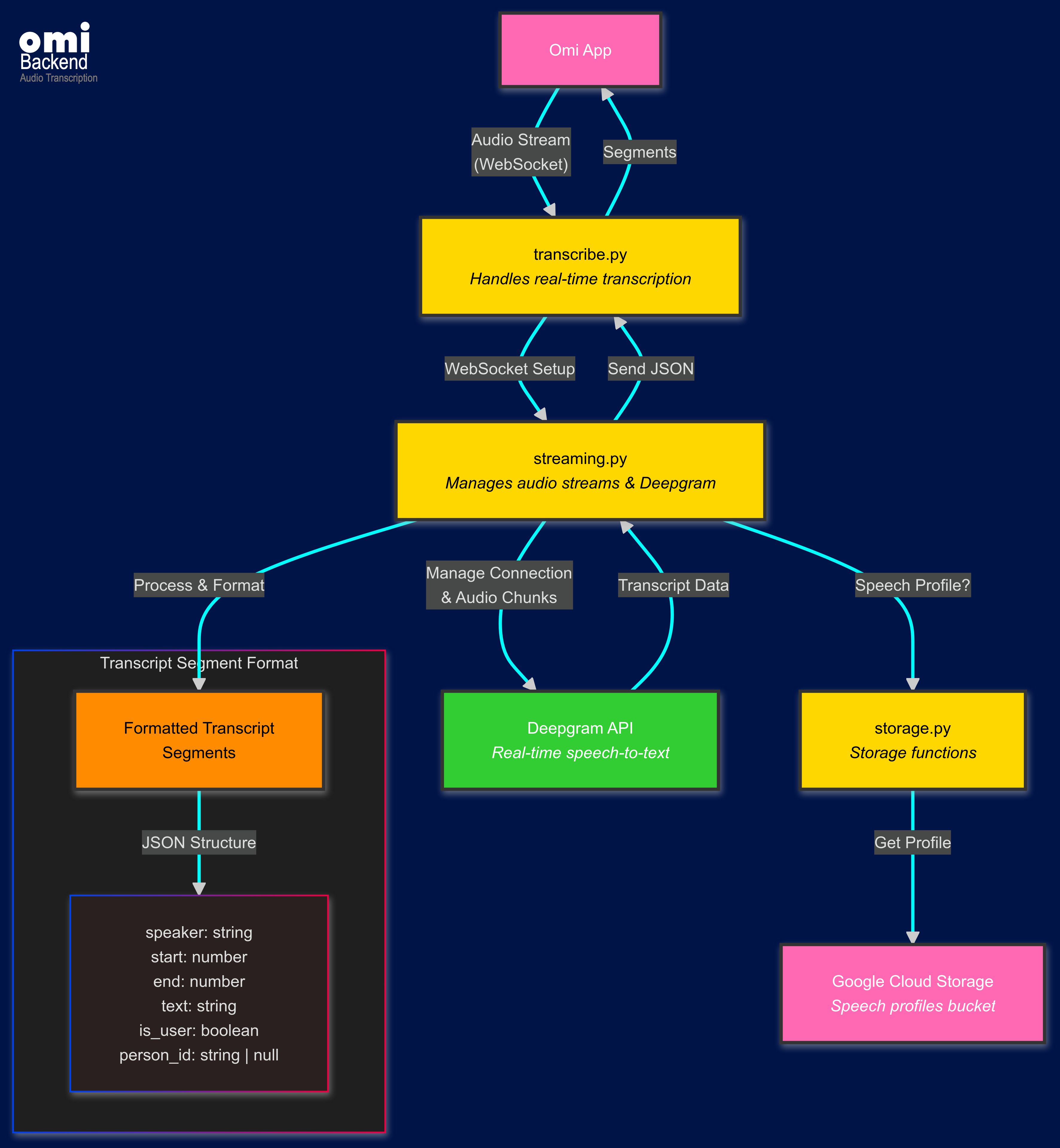

Transcription Flow

Connection Established

WebSocket connection accepted, user validated, STT provider selected based on language.

Audio Streaming

App sends binary audio chunks. Backend decodes based on codec parameter.

STT Processing

Decoded audio sent to Deepgram/Soniox. Provider returns word-level transcripts with speaker IDs.

Segment Creation

Words grouped into segments. Same-speaker consecutive words merged. Timing adjusted for speech profile offset.

Real-time Delivery

JSON segments streamed back to app immediately. UI updates as user speaks.

Conversation Lifecycle

Background task monitors silence. After conversation_timeout, conversation is processed and saved.

Message Formats

Incoming Messages (App → Backend)

Audio Data
Speaker Assignment
Custom Transcript
Image Chunk

Format: BinaryRaw audio bytes encoded according to the codec parameter. Sent continuously during recording.

[Binary audio chunk - varies by codec]

Keep-alive: Messages of 2 bytes or less are treated as heartbeat pings.

Format: JSONAssign a known person to detected speakers:

{
  "type": "speaker_assigned",
  "speaker_id": 1,
  "person_id": "person-uuid-here",
  "person_name": "John",
  "segment_ids": ["seg-uuid-1", "seg-uuid-2"]
}

Format: JSONWhen custom_stt=enabled, apps can provide their own transcripts:

{
  "type": "suggested_transcript",
  "segments": [
    {
      "text": "Hello there",
      "speaker": "SPEAKER_00",
      "speaker_id": 0,
      "start": 0.0,
      "end": 1.5,
      "is_user": true,
      "person_id": "known-person-uuid-or-null"
    }
  ],
  "stt_provider": "custom-provider-name"
}

See External Custom STT Service for building your own transcription service.

Format: JSONFor OpenGlass and visual captures:

{
  "type": "image_chunk",
  "id": "temp-image-id",
  "index": 0,
  "total": 3,
  "data": "base64-encoded-chunk"
}

Outgoing Messages (Backend → App)

Transcript Segments
Service Status
Speaker Suggestion
Conversation Created
Translations

Format: JSON ArrayReal-time transcript segments as they’re detected:

[
  {
    "id": "uuid-string",
    "text": "Hello there",
    "speaker": "SPEAKER_00",
    "speaker_id": 0,
    "is_user": true,
    "person_id": null,
    "start": 0.0,
    "end": 1.5,
    "speech_profile_processed": true,
    "stt_provider": "deepgram"
  }
]

Format: JSONConnection and service status updates:

{
  "type": "service_status",
  "status": "ready",
  "status_text": "Service Ready"
}

Format: JSONSystem suggests a known person for a detected speaker:

{
  "type": "speaker_label_suggestion",
  "speaker_id": 1,
  "person_id": "person-uuid",
  "person_name": "John",
  "segment_id": "segment-uuid"
}

Format: JSONSent when conversation timeout triggers processing:

{
  "type": "memory_created",
  "memory": {
    "id": "conversation-uuid",
    "structured": {
      "title": "Meeting Discussion",
      "overview": "..."
    }
  },
  "messages": []
}

Format: JSONWhen translation is enabled:

{
  "type": "translation",
  "segments": [
    {
      "id": "segment-uuid",
      "translations": [
        {"lang": "es", "text": "Hola ahí"}
      ]
    }
  ]
}

Transcript Segment Model

Each transcript segment contains:

Field	Type	Description
`id`	`string`	Unique UUID for the segment
`text`	`string`	Transcribed text content
`speaker`	`string`	Speaker label (`"SPEAKER_00"`, `"SPEAKER_01"`, etc.)
`speaker_id`	`integer`	Numeric speaker ID (0, 1, 2…)
`is_user`	`boolean`	`true` if spoken by device owner
`person_id`	`string?`	UUID of identified person (if matched)
`start`	`float`	Start time in seconds
`end`	`float`	End time in seconds
`speech_profile_processed`	`boolean`	Whether speech profile was used for identification
`stt_provider`	`string?`	Name of STT provider used

Connection Lifecycle

Lifecycle Events

Open

WebSocket accepted
User authentication verified
Language/STT service selected
STT connections initialized (with retry logic)
Speech profile loaded in background
Heartbeat task started (10s interval)

Stream

Audio received and decoded
Sent to STT provider(s)
Results collected in buffers
Processed every 600ms
Segments sent to client
Speaker suggestions generated

Usage statistics recorded
All STT sockets closed
Client WebSocket closed (code 1000/1001)
Buffers and collections cleared

Error Handling & Retry Logic

The system includes robust error handling:

Error Type	Handling
STT Connection Failed	Exponential backoff retry (1s → 32s, 3 attempts)
Provider Error	Automatic fallback to next provider
Decode Error	Log and skip corrupted audio chunk
WebSocket Error	Clean close with appropriate code

If all STT providers fail after retries, the connection will be closed with an error message. The app should handle reconnection.

Key File Locations

Component	Path
WebSocket Handler	`backend/routers/transcribe.py`
Deepgram Integration	`backend/utils/stt/streaming.py`
Soniox Integration	`backend/utils/stt/streaming.py`
Audio Decoding	`backend/routers/transcribe.py`
Speech Profile	`backend/utils/stt/speech_profile.py`
VAD (Voice Activity)	`backend/utils/stt/vad.py`
Transcript Model	`backend/models/transcript_segment.py`
